PRISM: Policy-shaping via Reward Decomposition for Inter-agent Symbiosis

1Cyber-physical Systems Lab, Department of Information Technology, Uppsala University

Abstract

Heterogeneous multi-robot warehouse systems require agents with different roles, capabilities, and resource constraints to coordinate around shared package-delivery tasks. PRISM introduces a symbiotic reward-shaping framework that decomposes task performance into relationship-aware components, measuring and shaping outcomes such as mutualism, commensalism, parasitism, and competition. In battery-aware TA-RWARE experiments with AGV and picker agents, PRISM improves delivery throughput, supports harder package types, and produces stronger mutualism proxies than flat-cooperative and task-only reward baselines.

PRISM symbiosis key idea
Ecological relationship types provide the organizing lens for reward decomposition in heterogeneous warehouse cooperation.

Key Idea

The central idea of introducing symbiosis into multi-robot cooperation is to move beyond undifferentiated team rewards and explicitly model how one robot changes another robot's task fitness. In heterogeneous teams, cooperation is relational: an AGV and a Picker may depend on each other because neither can complete a cross-role request alone. PRISM captures these directed dependencies as symbiotic relationships and converts them into policy-shaping signals, allowing agents to learn when their actions enable or constrain complementary partners without changing the original task objective.

Robots do not merely contribute separate pieces of work to a shared score. Their actions can enable, delay, or constrain the progress of specific teammates. An AGV can transport a package but may depend on Picker support at the shelf, while a Picker can handle the item but cannot complete a transport-dependent request alone.

Complementary robots learn which interactions improve one another's task progress, allowing the team to complete more cooperative requests and achieve a higher overall outcome.

Task-only Flat-cooperative PRISM (symbiotic)
What the reward is about Each robot's own task output One lumped team score The relationship created by each action
View of cooperation Robots contribute individually Robots are rewarded when the team performs well Robots learn how complementary actions enable one another
How higher outcomes emerge Improve local task completion Encourage broad team-level coordination Reinforce the cross-role interactions needed to complete cooperative requests
Sees how an action affects teammates No No Yes; per-pair and role-aware
Captures partner-specific dependencies No No Yes; AGV-Picker and AGV-two-Picker coupling
Distinguishes relationship types No No Yes; mutualism, commensalism, parasitism, antagonism, and neutrality
Relationship estimation - - Estimated online from task and resource events
Deliveries / episode (IPPO) 19.7 +/- 6.8 27.0 +/- 4.3 44.2 +/- 3.8
Deliveries / episode (MAPPO) 21.1 +/- 4.6 27.3 +/- 3.5 36.2 +/- 5.0
Gain vs. rule-based heuristic (average) -25.8% (n.s.) -1.5% (n.s.) +46.2%

PRISM improves cooperation by making hidden cross-role dependencies explicit during learning. The benefit is strongest for requests that require several complementary robots to coordinate, such as heavy deliveries requiring one AGV and two Pickers.

Method

The packaged experiments compare symbiotic shaping against flat-cooperative and task-only reward conditions across IPPO and MAPPO. Agents operate with partial observations, battery dynamics, role-specific actions, charging behavior, and package-type heterogeneity.

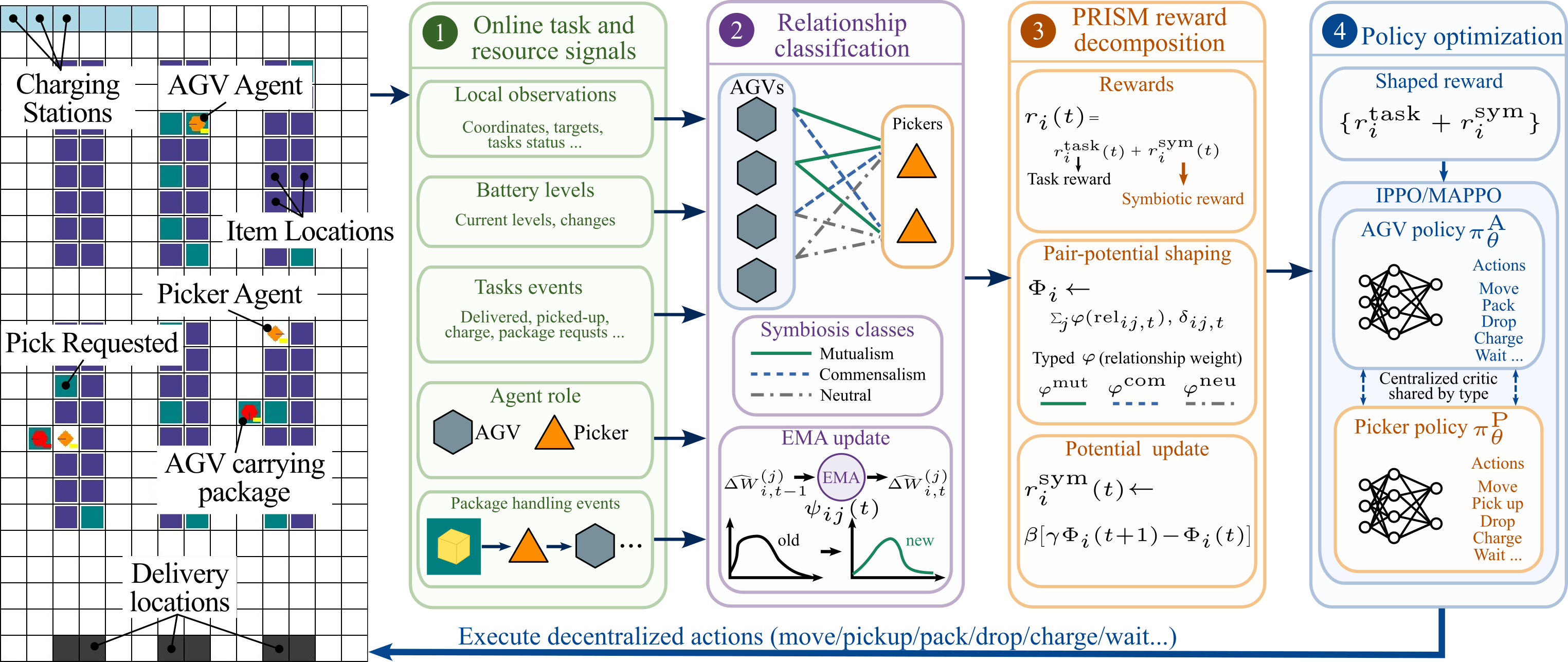

PRISM methodology diagram
The methodology connects heterogeneous role dynamics, decomposed reward terms, relationship classification, and policy optimization.

Results

These are the core quantitative and qualitative artifacts included in this repository. The tables are derived from the compact summaries in runs/results/.

Delivery throughput

Following the paper's throughput comparison, values are deliveries per episode, reported as mean and standard deviation over 18 learned-policy runs per reward condition and backbone. The heuristic baseline uses six seeded no-restock episodes.

Condition IPPO MAPPO vs. Heur.
PRISM 44.2 ± 3.8 36.2 ± 5.0 +46.2%
Flat-coop. 27.0 ± 4.3 ** 27.3 ± 3.5 ** -1.5% ns
Task-only 19.7 ± 6.8 ** 21.1 ± 4.6 ** -25.8% ns
Heuristic 27.5 ± 15.8 27.5 ± 15.8 —

** p < 0.01 vs. PRISM within the same backbone; ns indicates not significant. Averaged across backbones, PRISM reaches 40.2 deliveries per episode, improving over flat-cooperative reward by 48.3%, task-only reward by 97.1%, and the heuristic by 46.2%.

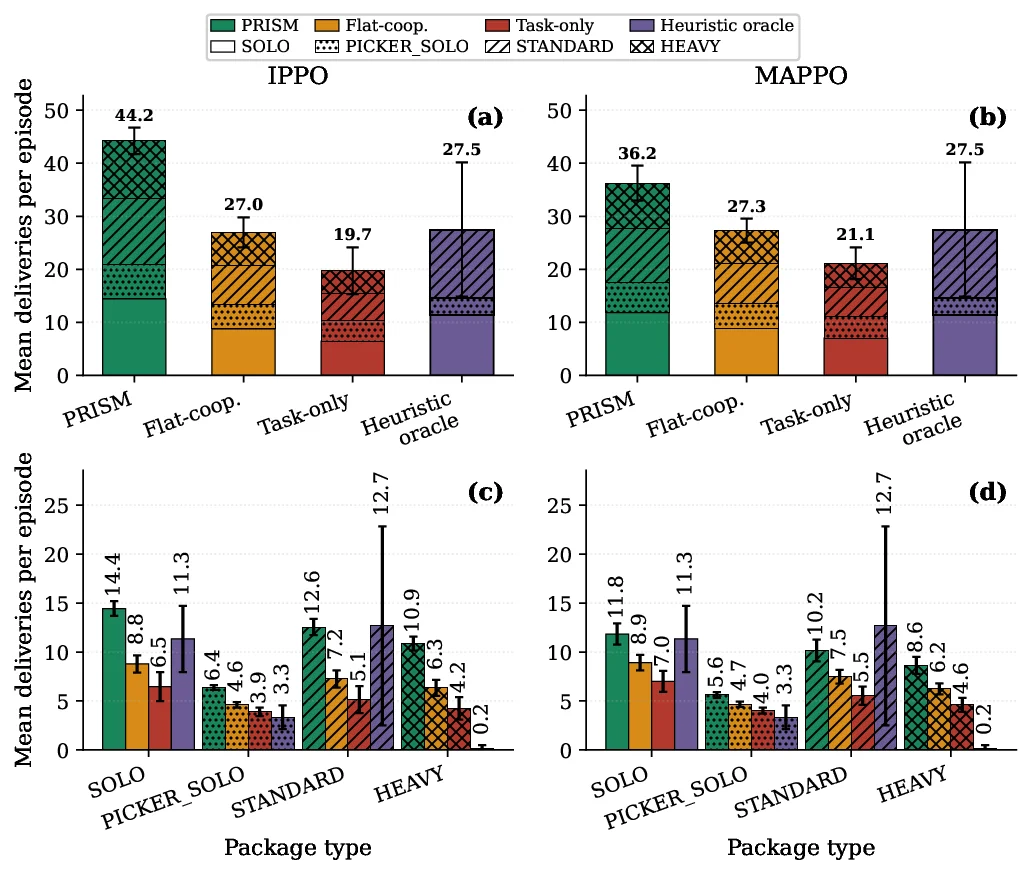

Throughput comparison
Throughput by backbone and package category.

Package-type delivery breakdown

PRISM improves total delivery counts and completes more standard and heavy packages under both IPPO and MAPPO.

Backend Reward condition Total SOLO PICKER_SOLO STANDARD HEAVY
IPPO PRISM 44.23 +/- 2.50 14.43 6.38 12.55 10.86
IPPO Flat-cooperative 26.96 +/- 2.82 8.77 4.61 7.25 6.33
IPPO Task-only 19.72 +/- 4.42 6.46 3.89 5.13 4.24
MAPPO PRISM 36.24 +/- 3.29 11.83 5.61 10.16 8.63
MAPPO Flat-cooperative 27.28 +/- 2.27 8.92 4.66 7.48 6.23
MAPPO Task-only 21.14 +/- 3.00 7.00 4.01 5.53 4.60

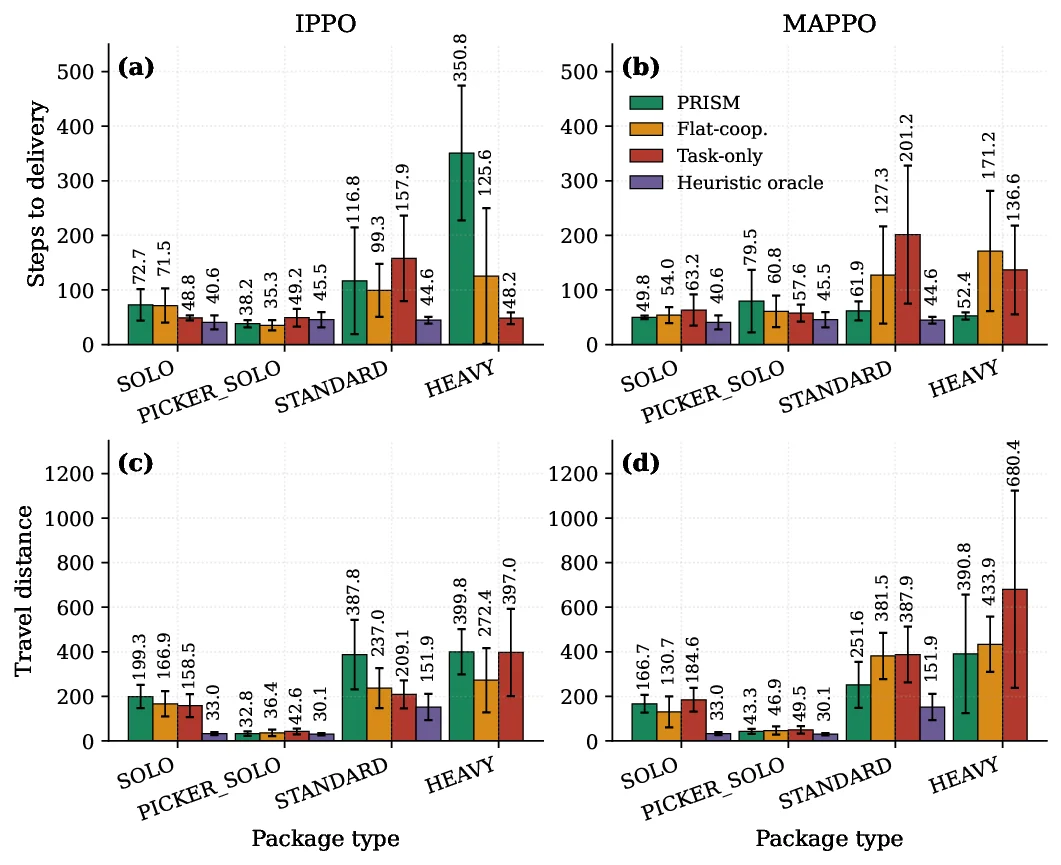

Delivery steps and package-type results
Package-type and delivery-step analysis.

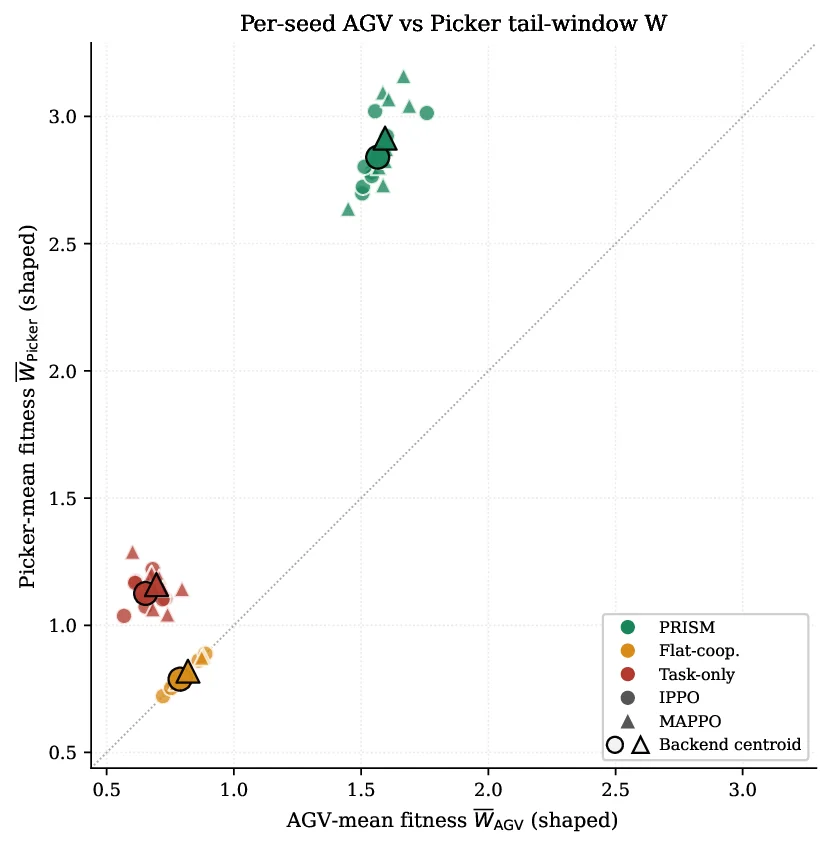

Cross-role coupling

PRISM produces clearer cross-role support patterns between AGVs and pickers.

Cross-role coupling
Cross-role coupling between heterogeneous agents.

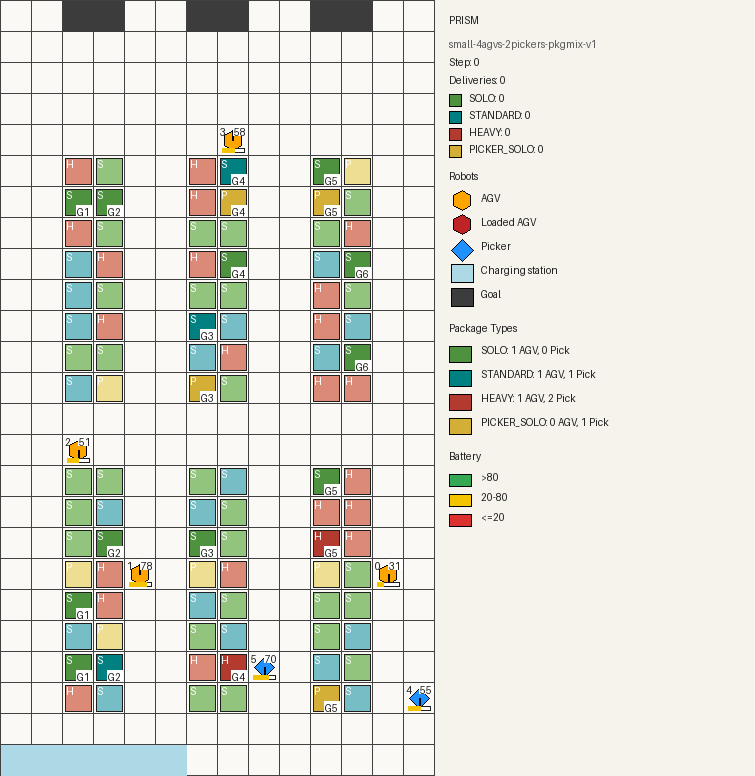

Example Evaluation Rollout

PRISM IPPO evaluation rollout in the heterogeneous warehouse setting. The compact artifact package includes learned-policy and heuristic rollouts for qualitative inspection.

PRISM IPPO, 81 deliveries
